40' Gooseneck with Mega Ramps
Call for Quote
(731) 986-5823Huntingdon, TN
The 25GN from Big Tex Trailers features 12K heavy-duty axles with premium adjustable suspension. This durable gooseneck trailer comes equipped with a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview

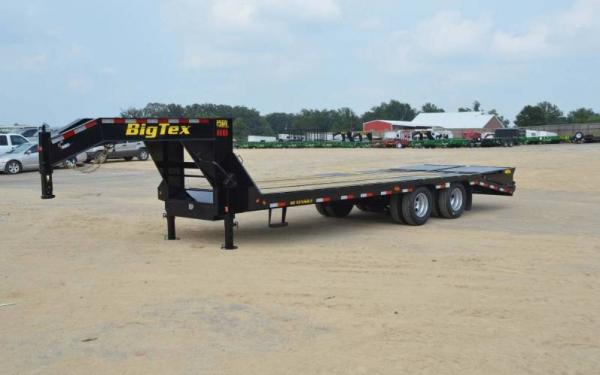

40' Gooseneck with Mega Ramps
25GN-35BK+5MR
Specs:
- G.A.W.R. (Ea. Axle) 12,000#
- 2-5/16" Ball Adj. Square Crank Type Coupler
- 3/8" Grd.70 Safety Chains w/Safety Latch Hook (2 each)
- Dual Two Speed Landing Gear 50K Capacity Jacks (Bolted On)
- 12" I-Beam Neck
- 12" I-Beam Frame
- 19lb I-Beam
- 3" Channel Crossmembers
- 8" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools
- 2-HD 10,000# Dual Wheel Axles w/Electric Brakes
- HD Adjustable Suspension
- ST235/80 R-16 Load Range E Dual Tire
- 16 x 6 HD Dual 8 Bolt Wheel
- 2" Pine Floor
- D.O.T. Stop, Tail, Turn & Clearance LED Lights
- 7-Way RV Electrical Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- 102" Overall Width
- Low Profile Bed, Pierced Frame
- Dual Speed Jack
- 8" Channel side rail
- 19lb I-Beam
- 12k Axles
- Formed Crossmember to Frame Gussets
- Modular Sealed Wiring Harness
- Safety Reflective Marker Tape
- Heavy Duty Oil Bath Axles w/Electric Brake on Each
- Complete Break-A-Way System with Battery and Charger
- 1-1/4" Pipe Chain Spool between Stake Pockets
- 28'(Flat Deck) and longer include Torque Tube
- Spare tire mount
- 2 Side bed steps
- 5' Dovetail w/Double Hinged Spring Assist Fold Over Ramps
- Grommet Mount Sealed LED Lighting
- Lockable Toolbox Between GN Uprights
- HD Adjustable Suspension
- Availability:
- In Stock
- Axle Config:
- Tandem Dual
- External Width:
- 102"
- External Length:
- 40'
- Hitch Type:
- Gooseneck
- Category:
- Gooseneck/Pintle Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Rear Type:
- Mega Ramp
- Color:
- Black
- GVWR:
- 25900
Features/Specifications
Features
| Axle | (2) 12,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| Jack | Dual Two Speed Landing Gear (Bolted On) |
| Neck | 12" I-Beam, 19# |
| Tire | ST235/80 R-16 Load Range E Dual |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 12" I-Beam, 19# |
| Wheel | 16" x 6"; Black Dual Wheel 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Ball Adj. Square Crank Type |
| Dovetail | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 25,900# |
| Elec. Plug | 7-Way RV |
| Hitch Type | Gooseneck |
| Side Rails | 8" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools |
| Suspension | Heavy Duty 30,000# Adjustable |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 12,000# |
Specifications
Big Tex 25GN Heavy Duty Tandem Dual Gooseneck Trailer
| Model | Description |
|---|---|
| 25GN-20+5 | 102" x 20' + 5' Tandem Dual Wheel Gooseneck |
| 25GN-25+5 | 102" x 25' + 5' Tandem Dual Wheel Gooseneck |
| 25GN-28+5 | 102" x 28' + 5' Tandem Dual Wheel Gooseneck |
| 25GN-30+5 | 102" x 30' + 5' Tandem Dual Wheel Gooseneck |
| 25GN-32+5 | 102" x 32' + 5' Tandem Dual Wheel Gooseneck |
| 25GN-35+5 | 102" x 35' + 5' Tandem Dual Wheel Gooseneck |
| 25GN-36 | 102" x 36' Tandem Dual Wheel Gooseneck (Straight) |
| 25GN-40 | 102" x 40' Tandem Dual Wheel Gooseneck (Straight) |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240" | 186" | 54' |
| 25'+5' | 300" | 240" | 60' |
| 28'+5' | 336" | 264' | 72" |
| 30'+5' | 360" | 280" | 80' |
| 32'+5' | 384" | 296" | 88" |
| 35'+5' | 420' | 320" | 100" |
| 36' | 432' | 288" | 144" |
| 40' | 480" | 320" | 160" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 6,500# | 19,400# | N/A |
| 25'+5' | 7,250# | 18,650# | N/A |
| 28'+5' | 7,850# | 18,050# | N/A |
| 30'+5' | 8,630# | 17,270# | N/A |
| 32'+5' | 8,450# | 17,450# | N/A |
| 35'+5' | 8,900# | 17,000# | N/A |
| 36' | 8,150# | 17,750# | N/A |
| 40' | 8,750# | 17,150# | N/A |
Standard/Optional Equipment
Standard Equipment
- 2-5/16" Ball Adjustable Coupler- Square Crank Type
- Dual Two Speed Landing Gear 50K Capacity (Bolted On)
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame Design
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 30,000# Adjustable Suspension
- Torque Tube Standard on 28 (Flat Deck) & Longer
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Spare Tire Mount (Top of Neck)
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel-Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BRAKES | Air Brake Assembly w/ABS on Front, Spring Brake Chambers and Auto Slacks |
| BRAKES | Electric Over Hydraulic Brakes (Disc) |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | 5/8" D-Ring (Each) |
| CARGO CONTROL | Low Profile Tool Box 12" x 18" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACKS | Dual Electric Over Hydraulic Jacks by Stillwell |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | 8 Rear Slide-In Ramps (Straight Deck Only) |
| RAMPS | No Dovetail Option (Deletes Dovetail and Ramps) |
| TIRE/WHEEL | Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare |
Financing
Take Advantage of Easy Trailer Financing
Working towards earning your customer satisfaction and providing prompt service,The Cowboy Store is supplying customers with more than just trailers. With our trailer financing from Sheffield Financial, our customers in its surrounding areas will find the funding solution they are searching for.
Apply For Credit With Sheffield
