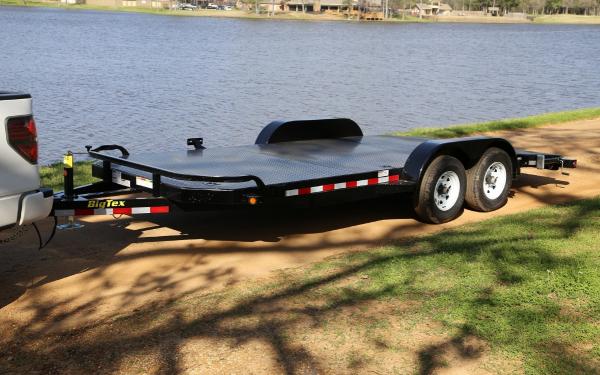

Big Tex 10DM Pro Series Auto Hauler
Call for Quote
(731) 986-5823Huntingdon, TN
The 10DM Diamond Back Car Hauler is our top-of-the-line, premier car hauler but with a larger G.V.W.R. and more overall cargo capacity. Delivering the hauling capabilities you demand with the eye-catching looks youve always wanted, the 10DM the choice to make when you need to haul more. Chrome wheels, steel floor, and diamond-plate rear slide-out ramps make the 10DM both easy to use and easy to look at, and its box tubing frame adds strength and durability. To cut a long story short, the 10DM has it all.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 10DM Pro Series Auto Hauler
Big Tex 10DM Pro Series Auto Hauler
The 10DM has many of the same great features as the 70DM, but with a larger GVWR and cargo capacity.
Structural Details:
* 5'' x 2'' Rectangular Tubing Frame
* 3'' Channel Crossmembers
* 5'' Channel Fold Back Tongue
* 1/8'' Diamond Plate Floor
* Chamfered Front w/ 2'' Tubular Stop Rail
* 42'' Steel Dovetail
* Diamond Plate Fenders (Removable)
* Tie Down Pockets
* 3-Year Structural Warranty
* 5' Rear Slide-In Channel Ramps
Where the Rubber Meets the Road:
* Premium Dexter EZ Lube Cambered 5,080# Axles
* NEV-R-ADJUST Electric Brakes On All Four Hubs
* ST 225/75 R15 Radial Tires
* Complete Break-A-Way System w/Charger
More Standard Features:
* 3 Position Adjustable Coupler
* 7,000# Drop Leg Jack w/ Sand Foot
* Rear Stabilizing Jacks
* Protected Wiring Harness
* All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape
* Spare Tire Mount
* 4 Recessed D-Rings
* Safety Chains Attached w/Cold Rolled Eyelets
* Automotive Grade Highly Decorative and Protective Finish
Available Lengths:
* 18'
* 20'
* 22'
Optional Add-Ons:
* Front Rockshield
* A-Frame Tongue Box
* Jack Upgrade
* Pintle Ring
* Spare Tire
* Tire Upgrade
- Axle Config:
- Tandem
- External Width:
- 83"
- External Length:
- 18-22
- Hitch Type:
- Bumper Pull
- Category:
- Car/Auto Haulers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Color:
- Black
- GVWR:
- 9990
Features/Specifications
Features
| Axle | (2) 5,200# Quick Lubricating w/ Electric Brakes |
|---|---|
| Jack | 8,000# Drop Leg - Top Wind (Bolted on) |
| Tire | ST225/75R-15 Load Range D |
| Floor | 1/8" Diamond Plate |
| Frame | 5" x 2" x .188" Rectangular Tubing |
| Sides | None |
| Wheel | 15" x 6" Aluminum Wheel 6 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 5" Channel Fold Back/Wrap |
| Coupler | Adjustable Forged 2-5/16" |
| Fenders | 9" x 72" Tear Drop w/Back |
|---|---|
| G.V.W.R. | 9,990# |
| Top Rail | 3/16" Fabricated Front Stop Rail |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" Channel |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 70 w/ Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 5,080# |
Specifications
Big Tex 10DM Diamond Back Car Hauler
| Model | Description |
|---|---|
| 10DM-18 | 83" x 18' Pro Series Tandem Axle Premium Car Hauler |
| 10DM-20 | 83" x 20' Pro Series Tandem Axle Premium Car Hauler |
| 10DM-22 | 83" x 22' Pro Series Tandem Axle Premium Car Hauler |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 18' | 218" | 132" | 86" |
| 20' | 240" | 150" | 90" |
| 22' | 264" | 156" | 108" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 18' | 2,480# | 7,510# | N/A |
| 20' | 2,630# | 7,360# | N/A |
| 22' | 2,790# | 7,200# | N/A |
Standard/Optional Equipment
Standard Equipment
- Stake Pockets Along Sides
- Adjustable, 2-5/16" Forged Coupler
- Fold Back/Wrap Tongue
- 8,000# Drop Leg Jack - Top Wind
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Fabricated Front Stop Rail
- 1/8" Diamond Plate Floor w/ (4) Recessed D-Rings
- Integrated Dovetail
- 5 Rear Slide-In Channel Ramps
- Rear Stabilizers
- Removable Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Complete Break-A-Way System w/ Charger
- Spare Tire Mount - Standard Equipped
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | Front Rockshield (Aluminum Tread Brite) |
| CARGO CONTROL | A-Frame Tongue Box (Aluminum Tread Brite) |
| CARGO CONTROL | A-Frame Tongue Box (Steel) |
| CARGO CONTROL | Additional Recessed D-Rings in Floor |
| CARGO CONTROL | Additional Stake Pockets |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| TIRE/WHEEL | Spare Tire (ST225/75 R-15 LR-D, Aluminum Wheel) |
